Typical pile parameters:

Maximum pile diameter: 3.5 metres

Maximum pile length: 90 metres + water depth

Maximum pile weight: 200 tons

Driver tower form: Triangle tower

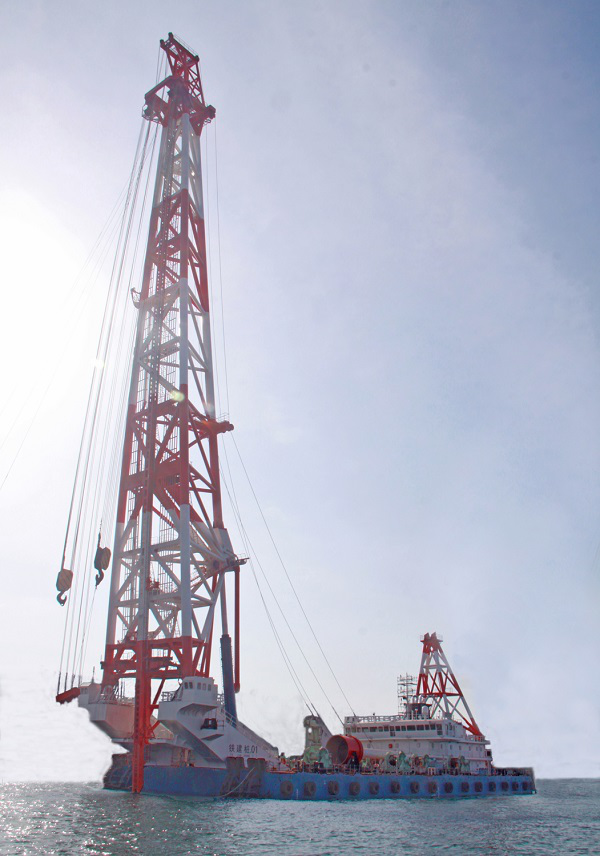

The super large pile driver is equipped with two sets of the most advanced large pile driving systems (108 diesel hammer and S-600 hydraulic hammer), an automatic ballasting system, a centimetre-grade GPS system and a four-corner depth sensing system; it is applicable to driving with pipes between 1.2 metres and 3.5 metres in diameter, and is a powerful support to coastal hydraulic construction works.
