Main parameters:

Length overall: 118.9 metres

Moulded breadth: 48 metres

Moulded depth: 8.8 metres

Designed draft: 4.8 metres

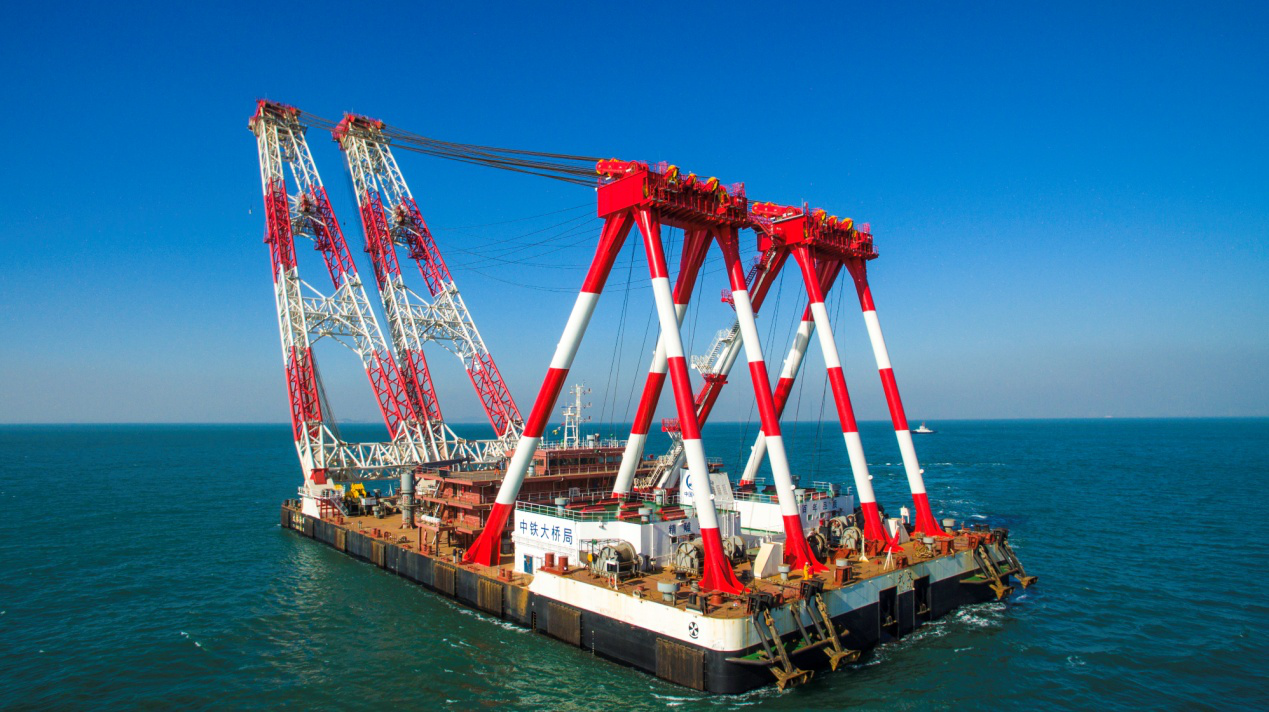

The 3,600 tonnage floating crane is a non-propelled floating crane; having kedging capacity, it is equipped with a 3,600 tonnage double-cantilever luffing-type crane. The lifting capacity of every cantilever is 1,800 tons; with respect to the lifting height above water, that of the main hook is 110 metres and the secondary hook is 130 metres; the working radius is 38 metres to 90 metres; 8-anchor radial mooring & positioning are adopted; it has strong capacity, and great adaptability, and can efficiently guarantee lifting and installation of coastal or offshore large bridges and equipment in China.
